举升重量Lifting capacity: 3.5T

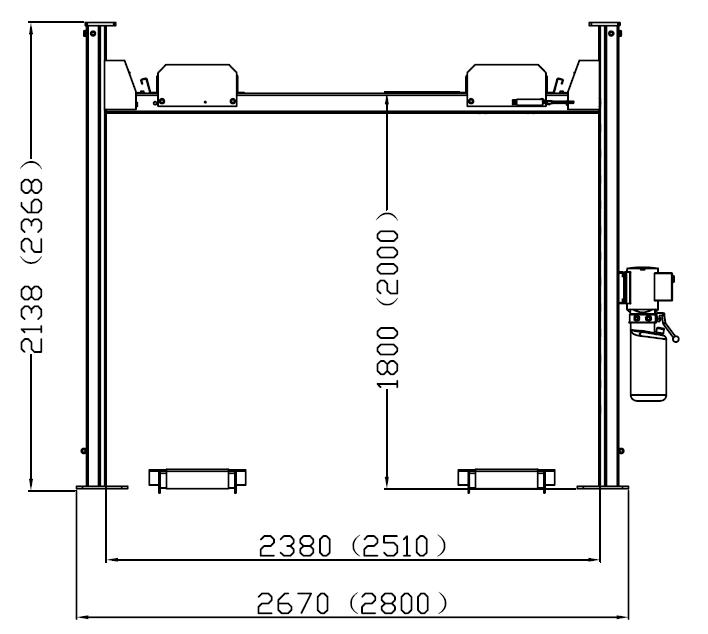

举升高度C:Lifting height(mm): 1900mm/2000mm/2100mm/1800mm/1800mm/2000mm
最低高度Min. height :130mm
总宽Overall witgh :2670mm/2670mm/2670mm/2500mm/2670mm/2800mm
立柱高度Column height(mm) :2210mm/2340mm/2600mm/2110mm/2110mm/2340mm

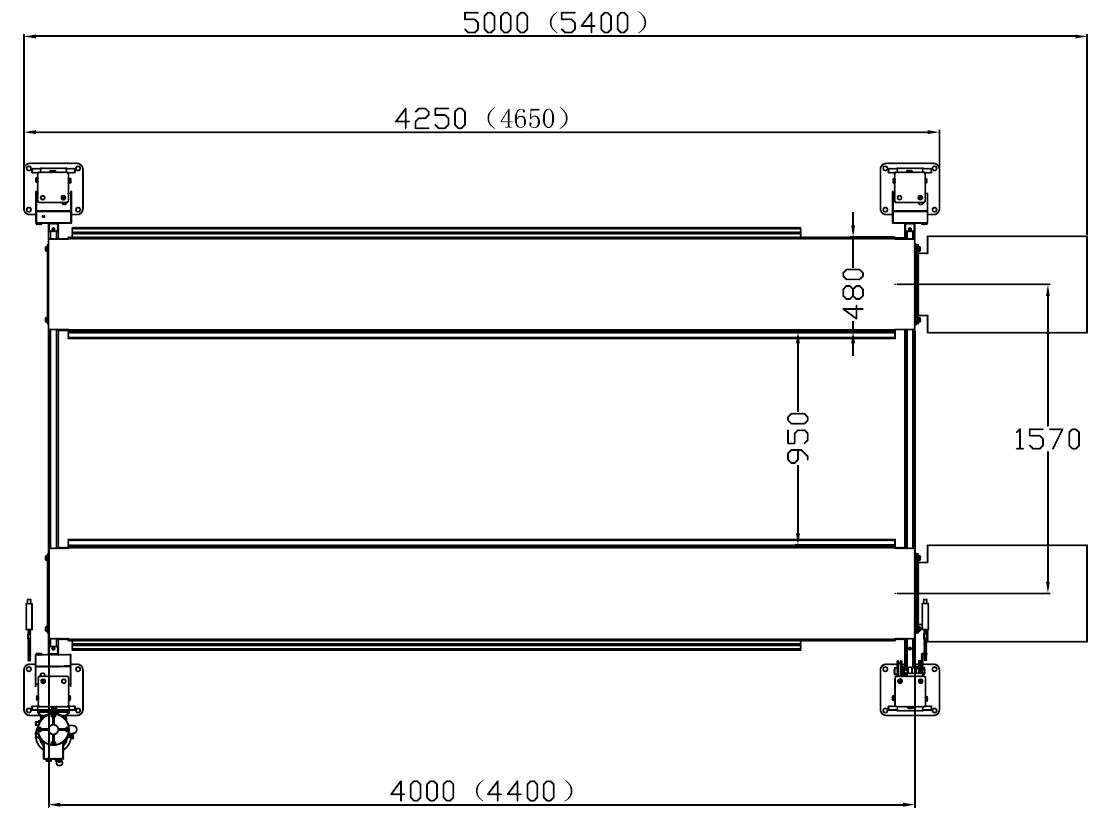

跑道长度A:Runway length(mm) :4200mm/4400mm/4200mm/4000mm/4000mm/4400mm
跑道宽度Runway width(mm) :480mm
引桥长度 Slope legth(mm) :870mm
举升时间Lifting tme: 60S
额定油压Rated oilpressure :18Mpa
电机功率 Motor power :2.2KW
电源要求 Power supply: 220V,240V,380V,415V
重量Weight:780kg/830kg/750kg/740kg/760kg/850kg
|
