举升重量Lifting capacity :3000kg

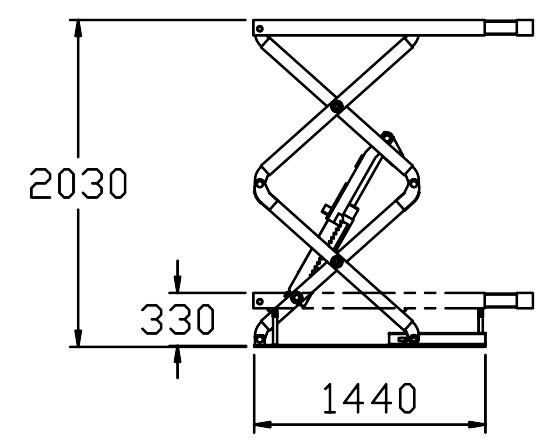

举升高度lifting height:2030mm
最小举升高度Min. height :330mm
举升时间Lifting time : 55~60S
平台总长度Overall length for platform: 1540~1740mm

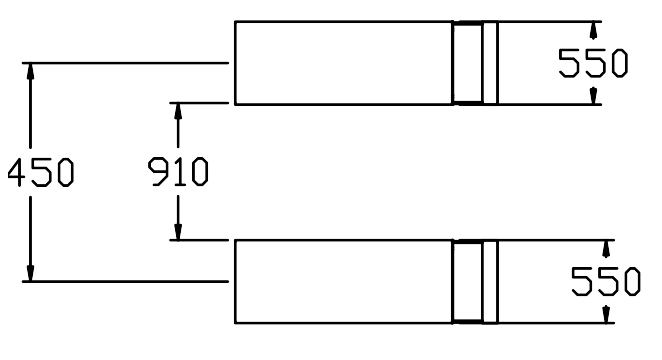

平台总宽度Overall width for platform :550mm
平台间宽度Width between platform :910mm
电机功率Motor power :2.2KW
电源要求Power supply :220V/380V/415V
额定油压Oil pressure :20MPa
气源压力Air supply pressure :6-8bar
重量Weight :868kg
包装尺寸Overall size: 1600×600×780mm/560×450×1150mm
20“柜装箱数量18台 :18 units can be loaded into one 20”container
|
