举升重量Lifting capacity :3000kg/6600lbs

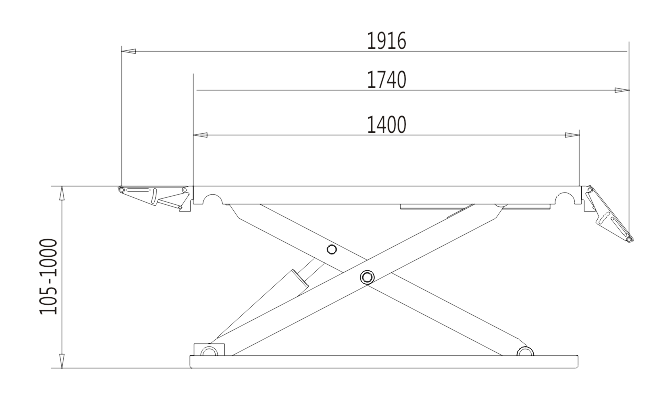

最大举升高度 Max. lifting height :1000mm
最小举升高度Min. height :110mm
举升时间 Lifting time :30S

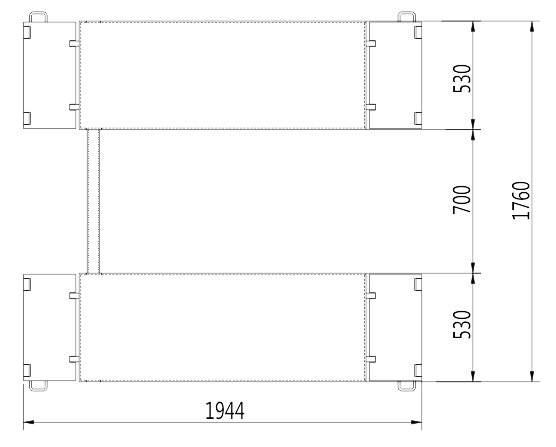

平台总长度 Overall length for platform :1400mm
平台宽度Overall width:530mm
平台总宽度Overall width for platform :1760mm
平台间宽度Width between platform :700mm
电机功率Motor power:2.2KW
电源要求Power supply :220V/380V/415V
气源要求 Air supply:6-8bar
重量 Weight :A:550Kg/B:570Kg/D:600Kg
包装尺寸 Packing size:1800*1540*200+520*430*1150mm
20柜装箱数量30台 :30 units can be loaded into one 20”container
|
