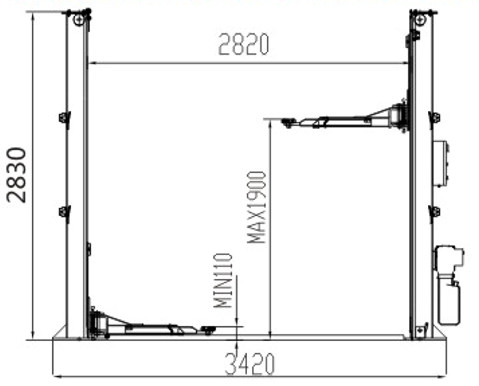

Lifting capacity 3200KG /4000KG
Lifting height 1900mm
Minimum height 110mm
Overall height 2830mm
Overall width 3420mm
Width between columns 2820mm
Lifting time 50s
Lowering time 55s
Motor power 2.2kw
Power supply 220V, 240V, 380V, 415V
Weight 635/670kg
Package size 2900*530*770mm
24 units can be loaded into one 20”container
|
