举升重量Lifting capacity 3200kg/4000kg
举升高度Lifting heigth 1800mm
最低高度Min. height 110mm
举升时间Lifting time 45s/50s

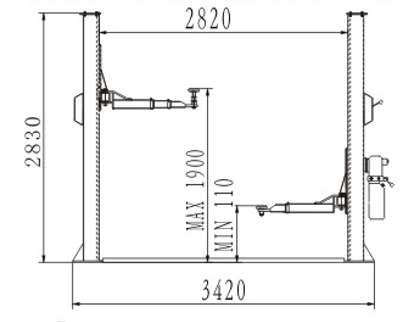

总高Overall height 2830mm
总宽Overall width 3420mm

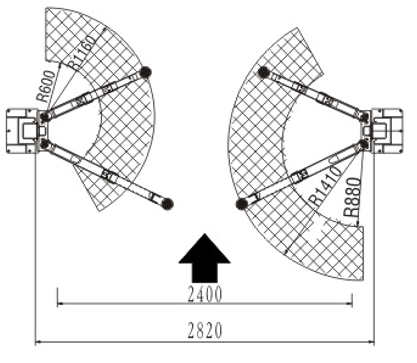

柱间宽Width between columns 2820mm
电机功率Motor power 2.2kw
电源要求Power supply 220V/240V/380V/415V
重量Weight 636kg/680kg
包装尺寸Packing size 2900*530*770mm
20柜装箱数量 24 units can be loaded into a 20" container
|
