Description of product images and characteristics

 Truck tyre changer > Home
  X-TTC3026

Semi-Auyomatic truck tyre changer X-TC3026 universal

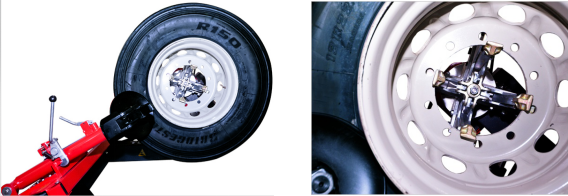

· Self-Centering chuck rim capacity 14"-26"
· Clochwise and anticlockwise rotation of chuck
· Italian pump optional
·

Technical Specification

TECHNICAL SPECIFICATION:
rim diameter 14"--26"
max.wheel weight 500kg
max.wheel width 780mm
max.tyre diameter 1600mm
hydraulic pump motor 1.5kw-380V-3Ph(220V optional)
gearbox motor 1.8kw 380V(220V)-3Ph(200V optioanl)
bead break force 2500kg
operation contrl voltage 24V
machine weight approx 570kg
overall dimension approx 2500*2000mm
power 220V/ 400V -50Hz/ 60Hz-1Ph/ 3Ph
  Details

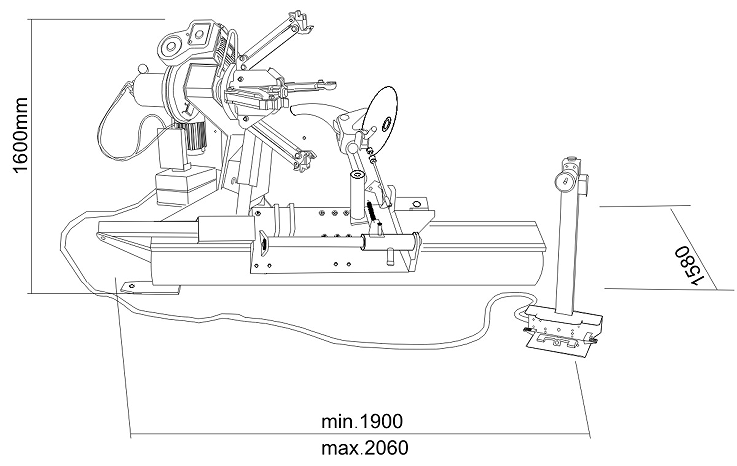

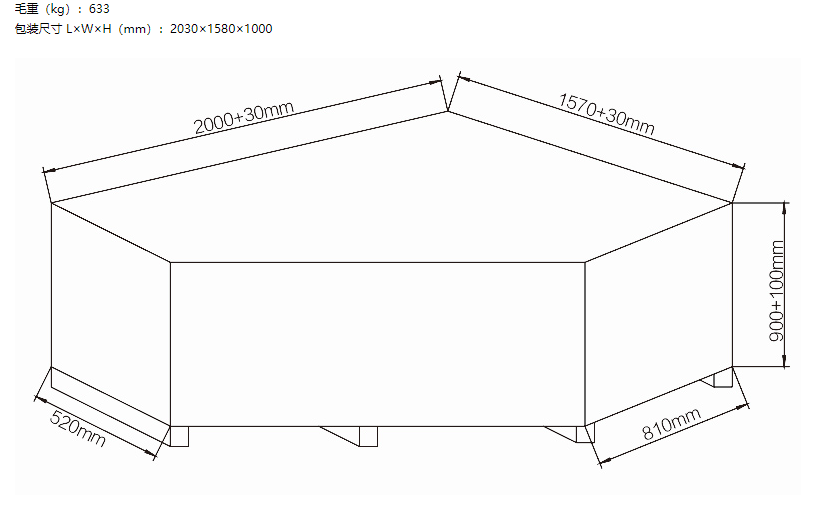

  Packing size and line drawings

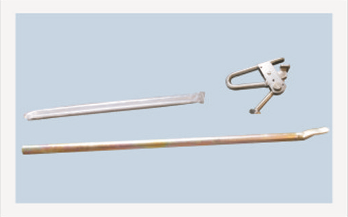

  Optional Parts
