Description of product images and characteristics

 Small scissor lift > Home
  XSS-110

Ground mounting
4-cylinders structure, 110mm minimum height.
Aluminum motor prevents overheat.
24V safety control system .
24V height limit switch included optional.
Equipment down to the ground 500 mm, the control box signal device alarm, ensured the safety of operator and surrounding personnel optional.

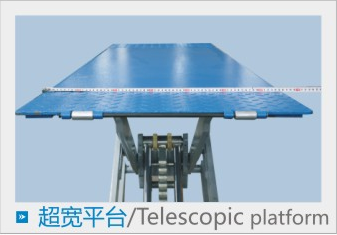

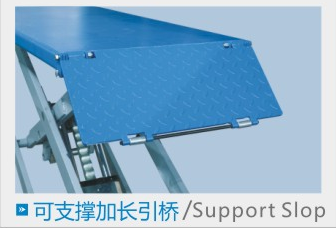

Platforms extension for lifting long vehicles.
Pneumatic control lock device.
115% dynamic and 150% static loading test passed.
CE approved.

·

Technical Specification

Lifting capacity:3000kg
lifting height :1830mm
Min. height :110mm
Lifting time: 50S
Overall length for platform: 140~2050mm
Overall width for platform: 660mm
Motor power :2.2kw
Power supply: 220V/380V/415V
Oil pressure:20MPa
Air supply pressure :6-8bar
Weight :1045kg
Packing size: 1620×680×340mm/560×450×1150mm
36 units can be loaded into one 20”container

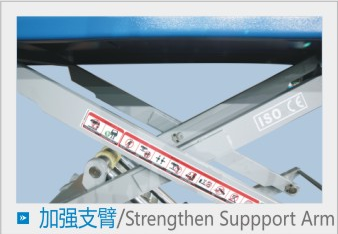

  Details

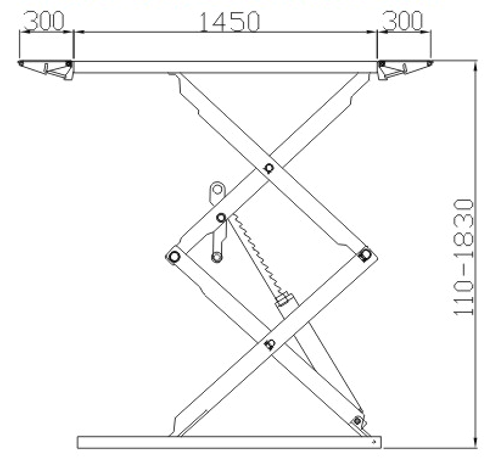

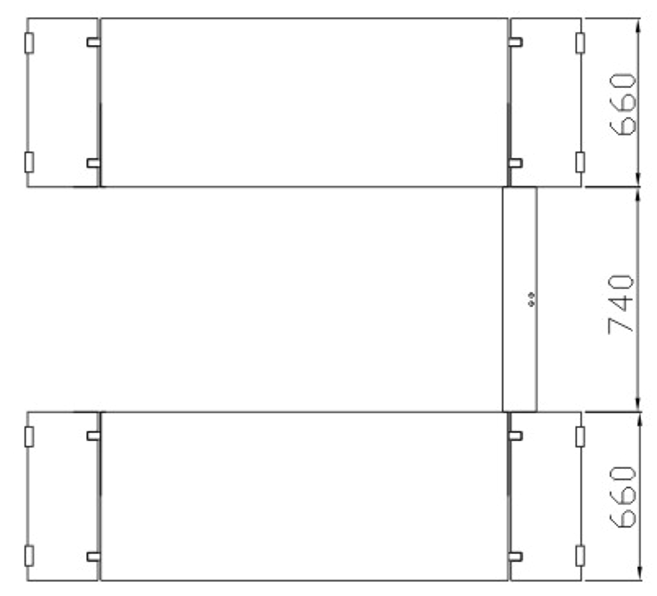

  Packing size and line drawings

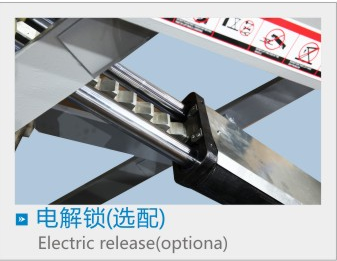

  Optional Parts
