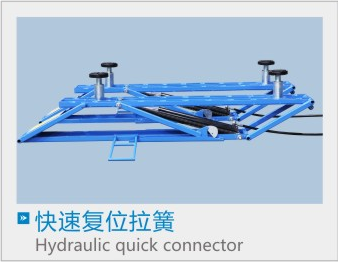

XSS-MINI2800

Small structure, light weight,portable and space saving

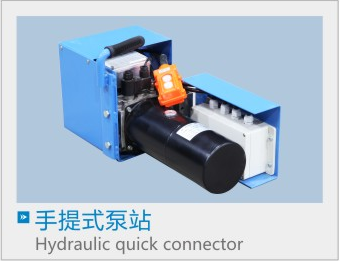

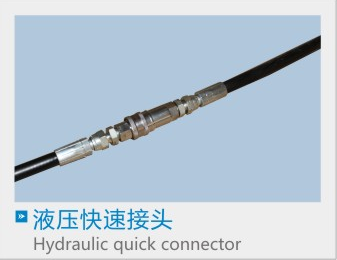

Quik-connection hoss and portable power unit insures proper sealing,convenient handling,simple operation
Separate and open-center frames fit various sites and compact vehicles
Hydraulic system features automatic leveling distribution valve for balance of 2 frames
Remeote control for convenience and safety
Dual-position automatic safety lock automatically engages as the lift ascends
12 pieces adjustable rubber blocks and 4 pieces height, extensions to support nder chassis at different height
Cylinders are supplied with safety valves that prevent quick descending when hydraulic hoses fail
Cost option for DC 12V startup with the help of car battery

·

Technical Specification

Lifting capacity :2800KG
Lifting height: 570mm
Min.height :90mm
Lifting time :20~25s
Motor power :0.75KW
Power supply :12V/DC,220V,380V/50Hz/AC
Oil pressure :18Mpa
Weight :95kg
Packing size :1810/1940*320*200mm+580*280*270mm
  Details

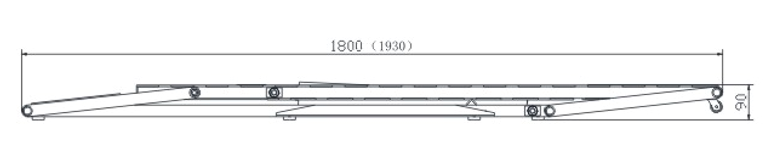

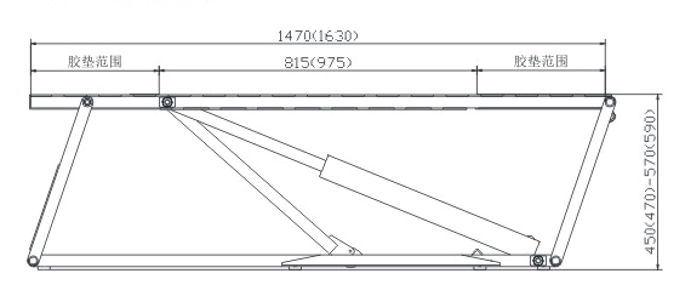

  Packing size and line drawings

  Optional Parts
