  X1PL-6000P1

Single post parking lift :X1PL-6000P1
2700kg(6600lbs)parking capacity
Save garage parking space
X1PL-6000P1 can be used as public parking facilities

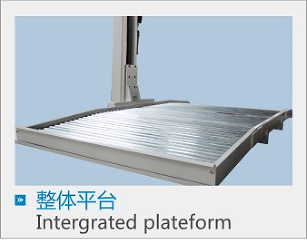

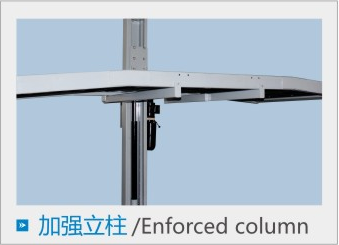

Solid reliable lifting arm and sliding platform

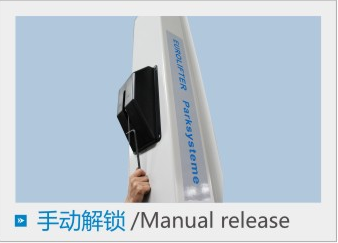

Manual release at operating position
Operatingcontrol system with 24V safety voltage
24V height limit switch provided
Hydralulic pressure pre-setting preventing from lifting vehicle with exceeding rated loads
Routine testing with 115% dynamic and 150%static loading
CE approved

·

Technical Specification

TECHNICAL SPECIFICATION:
Lifting capacity :2700kg/6600Lbs
Lifting height :2000mm
Min. height:110mm
Overall length: 4280mm
Overall width :2852mm
Overall height:3076mm
Lifting time :50sec.
Motor power :2.2KW
Power supply :220/380/415V
weight :1050kg
Packing size :2800*550*400+3900*550*400+1700*750*150
12units for a 20" container
  Details

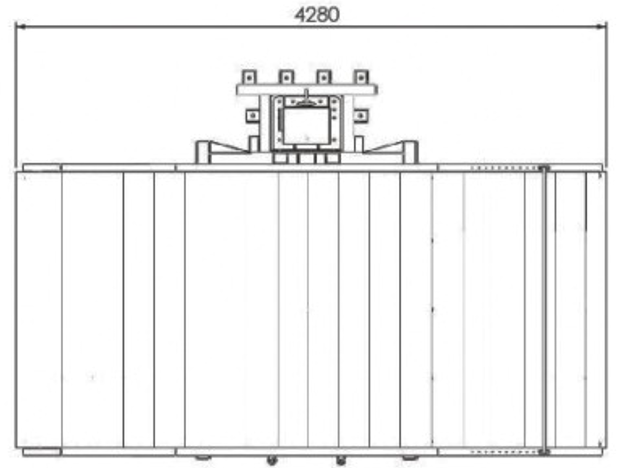

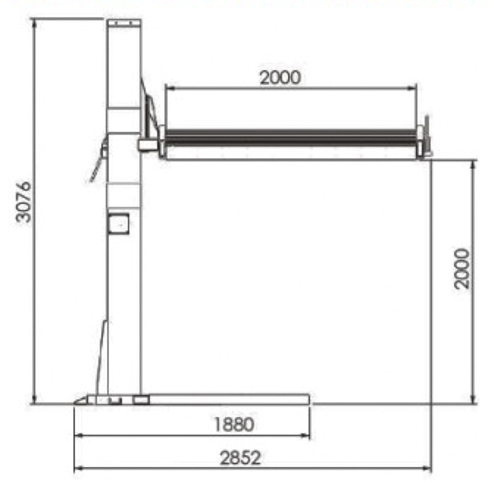

  Packing size and line drawings
