Description of product images and characteristics

 PARKING LIFTS > Home
  X1PL-6000P

Single post parking lift X1PL-6000P
2700kg(6600lbs)parking capacity
Save garage parking space
X1PL-6000P can be used as public parking facilities
Solid reliable lifting arm and sliding platform
Manual release at operating position
Operatingcontrol system with 24V safety voltage
24V height limit switch provided
Hydralulic pressure pre-setting preventing from lifting vehicle with exceeding rated loads
Routine testing with 115% dynamic and 150%static loading
CE approved

·

Technical Specification

TECHNICAL SPECIFICATION:
Lifting capacity ：2700kg/6600Lbs
Lifting height ：1900mm
Min. height ：110mm
Overall length ：4210mm
Overall width：2680mm
Overall height ：2830mm
Lifting time：50sec.
Motor power： 2.2KW
Power supply： 220/380/415V
weight ：1150kg
Packing size ：2800*550*400+3900*550*400+1700*750*150
12units for a 20" container
  Details

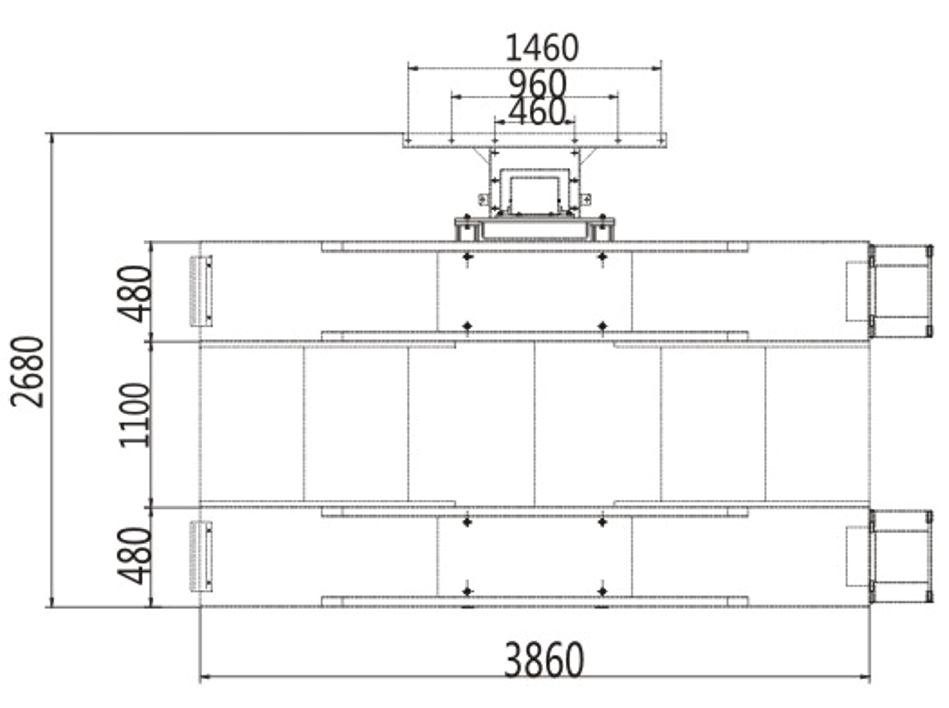

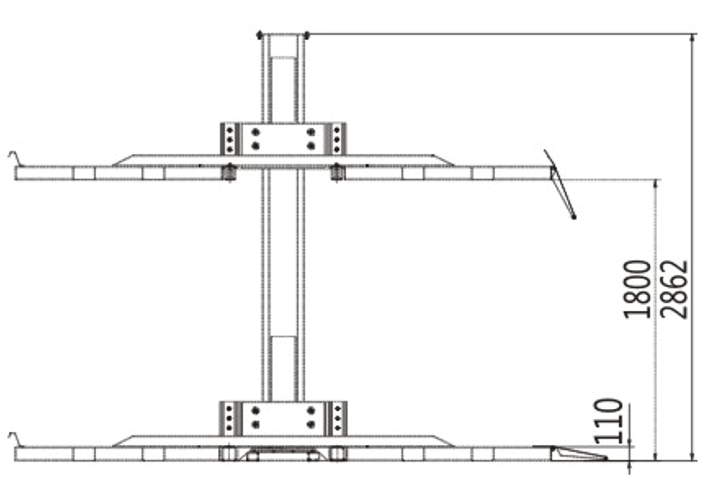

  Packing size and line drawings

  Optional Parts
