X-TC2422C

◆Foot valve fine structure can be removed as a whole, operation stably and reliably,  and easy maintenance ;
◆Special steel mount & demount head, super hardness, reduce frictions, as well as rust-proof;
◆Grip jaw adopted U.S. 8640 alloy steel, high strength, wear resistant and antirust ;
◆The up locking and the swing arm structure, six-axis oriented tube extended to 270mm, to effectively prevent deformation of six-axis;
◆Pressure tyre lever, assistance for handing run flat, low-profile and stiff tyres;
◆Equipped with the built-in air tank jet-blast device, controlled by a unique foot valve and hand-held pneumatic device.

·

Technical Specification

TECHNICAL SPECIFICATION:
motor power: 1.1kw/0.75kw/0.55kw
power supply: 110V/220V/240V/380V/415V
max.wheel diameter: 44"(1120mm)
max.wheel width :14"(360mm)
outside clamping: 10"--21"
inside clamping :12"--24"
air supply: 8--10bar
rotation speed: 6rpm
bead breaker force: 2500kg
noise level: <70dB
weight: 256kg
package size :1100*950*950mm
20"container 24units
  Details

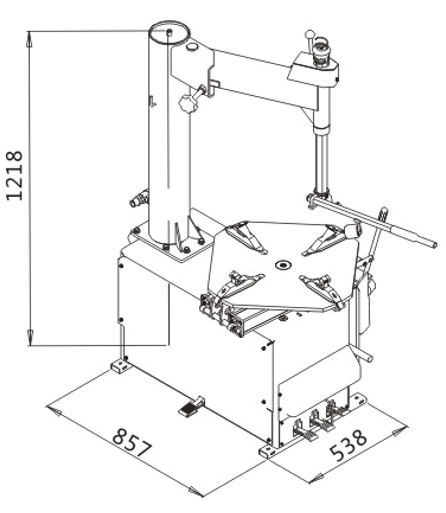

  Packing size and line drawings

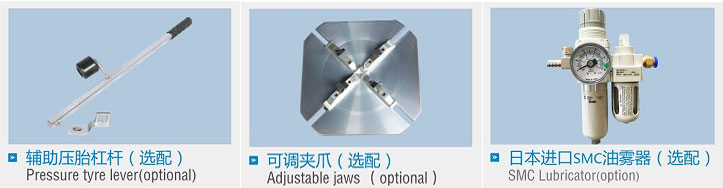

  Optional Parts
