Description of product images and characteristics

 Truck wheel balancer > Home
  X-TWB50

◆Both truck and car switchover;
◆Pneumatic braking;
◆PneuAlift for large wheel loading;
◆Self calibration;
◆Unbalance optimization function;
◆Measurements in inches or millimeters, readout in gram or oz;
◆CE approved.
·

Technical Specification

motor power 0.55kw/0.8kw
power supply 415V /380V/ 220V/ -50Hz/60Hz-3ph
balancing speed 210rpm
balancing accuracy car ±1g;truck ±25g
rim width 76~510mm/3"~20"
rim diameter 305~615mm/12~24"
max. wheel diameter 1270mm/50"
max. wheel weight 200kg
noise level ＜70dB
weight 200kg
packing size 1250*1000*1250mm
20" container 9units
  Details

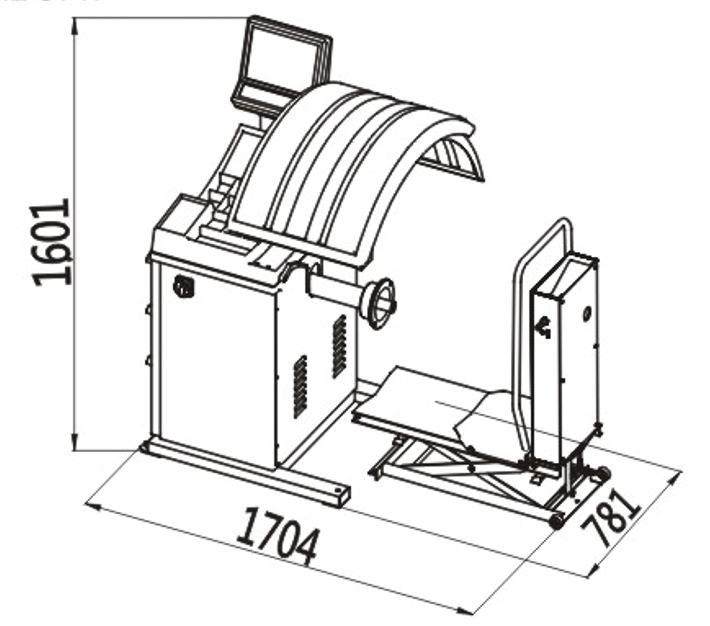

  Packing size and line drawings

  Optional Parts
