 Small scissor lift > Home
  XSS-330

In-ground mounting；

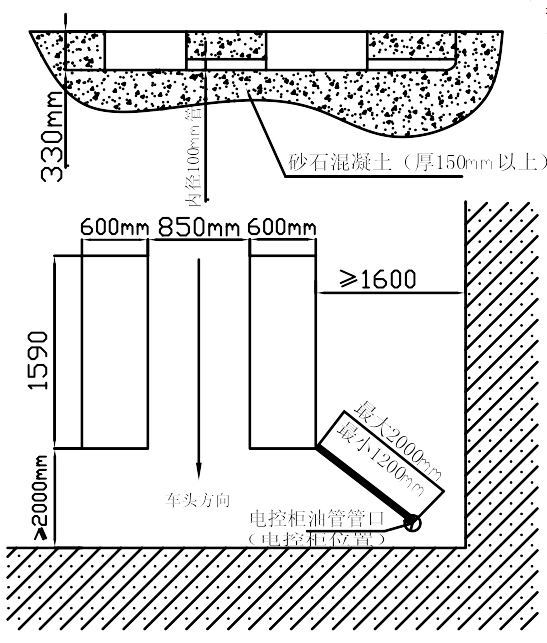

2-cylinders structure,330mm under trench installation；
Aluminum motor prevents overheat；
24V safety control system；

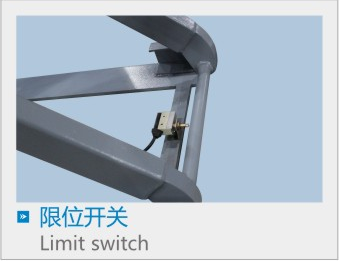

24V height limit switch included；
Safety signal when lowering from 500mm above ground；

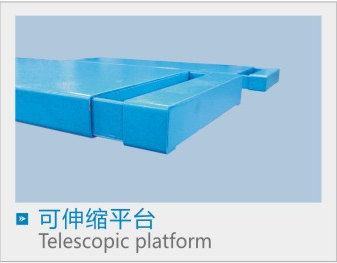

Platforms can extension for different long vehicles；
115%dynamic and 150% static loading test passed；
CE approved.

·

Technical Specification

Lifting capacity:3000kg
lifting height:2030mm
Min. height:330mm
Lifting time:55~60S
Overall length for platform :1540~1740mm
Overall width for platform: 550mm
Width between platform :910mm
Motor power:2.2KW
Power supply:220V/380V/415V
Oil pressure :20MPa
Air supply pressure: 6-8bar
Weight:868kg
Overall size :1600×600×780mm/560×450×1150mm
18 units can be loaded into one 20”container
  Details

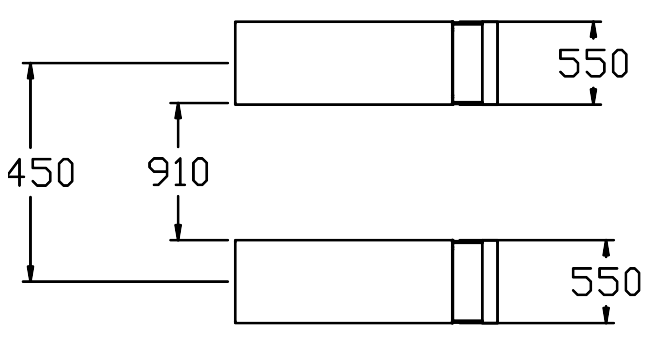

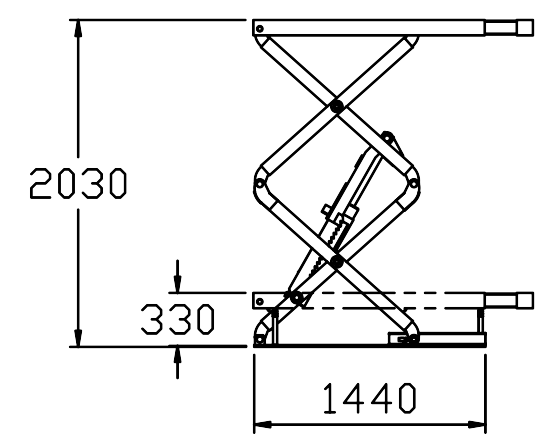

  Packing size and line drawings

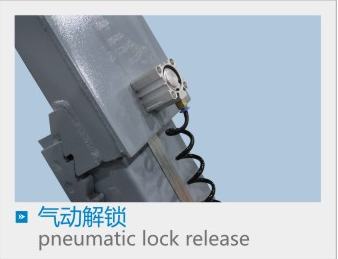

  Optional Parts
