Description of product images and characteristics

 Semi-automatic tyre changer > Home
  X-TC2019

◆Foot valve fine structure can be removed as a whole, operation stably and reliably,  and easy maintenance ;

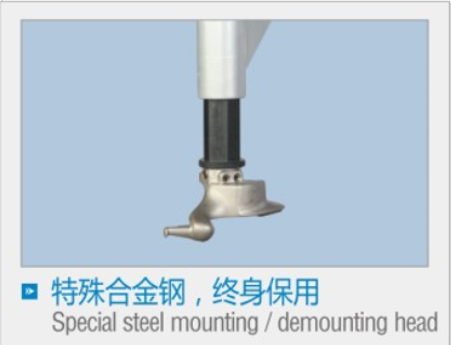

◆Special steel mount & demount head, super hardness, reduce frictions, as well as rust-proof;

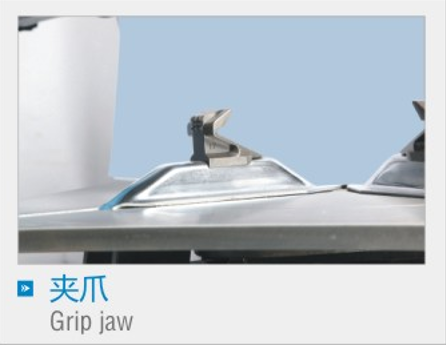

◆Grip jaw adopted U.S. 8640 alloy steel, high strength, wear resistant and antirust ;
◆Adjustable clamps optional,can extend the scope of the changing from 8'' to 23''.
·

Technical Specification

TECHNICAL SPECIFICATION:
motor power： 1.1kw/0.75kw/0.55kw
power supply ：110V/220V/240V/380V/415V
max.wheel diameter ：38"（960mm）
max.wheel width ：11"(280mm)
outside clamping ：10"--18"
inside clamping ：12"--21"
air supply ：8--10bar
rotation speed： 6rpm
bead breaker force ：2500kg
noise level： <70dB
weight： 203kg
package size ：970*760*875mm
20"container 36 units
  Details

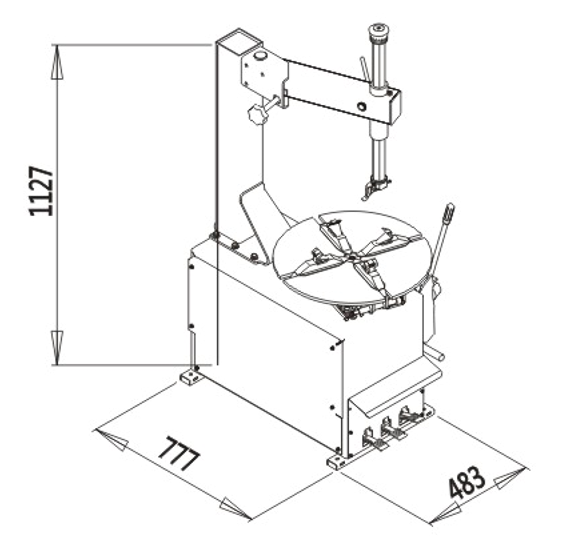

  Packing size and line drawings

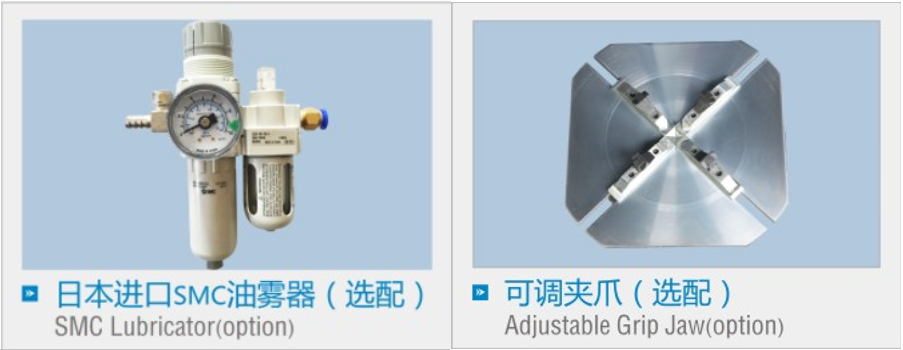

  Optional Parts
