Description of product images and characteristics

 Semi-automatic wheel balancer > Home
  X-WB98

   The caliper can measure  the distance
   With self-calibration balancing function
   Tyre balance optimization
   Balancing the motorcycle tyre with adapter optional

   Equipped with conversion functionFrom inch to

   millimeter and gram to ounce

   The enhanced balance shaft, good stability, suitable for

   all kinds of flat wheel measurement.

   CE approved.
·

Technical Specification

motor power 0.25kw/0.35kw
power supply 240V /220V/ 110V-50Hz/60Hz-1ph
balancing speed 200rpm
balancing accuracy ±1g
rim width 40~510mm/1.5"~20"
rim diameter 254~615mm/10~24"
max. wheel diameter 940mm/37"
max. wheel weight 65kg
noise level ＜70dB
weight 112kg
packing size 1000*900*1100mm
20" container 24units
  Details

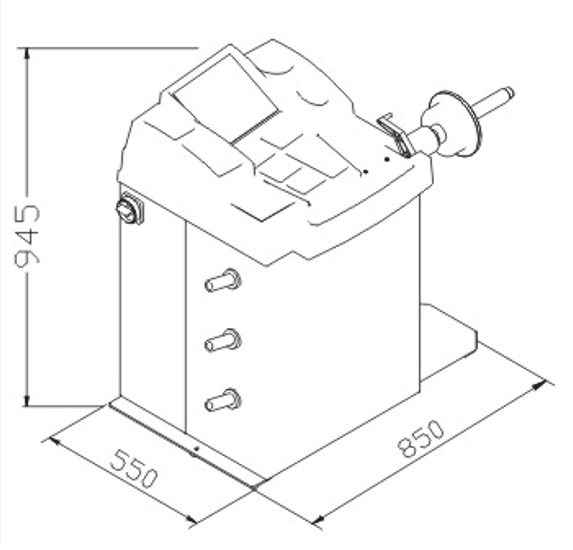

  Packing size and line drawings

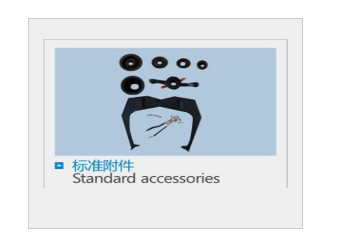

  Optional Parts
