Description of product images and characteristics

 Touchless Automatic tyre changer > Home
  X-TC750+L6

◆Tilting column and pneumatic locking mount & demount arm;

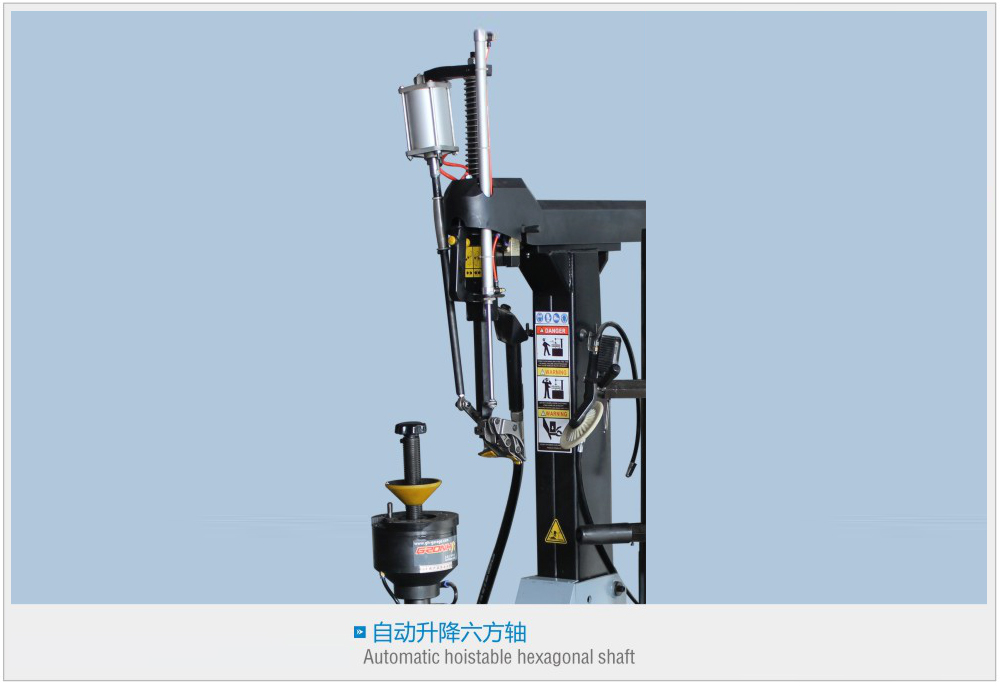

◆Six-axis shaft oriented tube extends to 270mm can prevent effectively deformation of six-axis;shaft:
◆Foot valve fine structure can be demounting as a whole, operation stably and reliably, and easy maintenance;

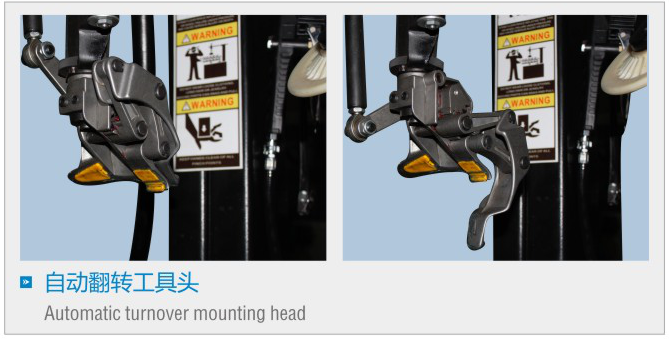

◆Automatic mount & demount head,operration easy; mainshaft pneumatic locking fast and reliable:

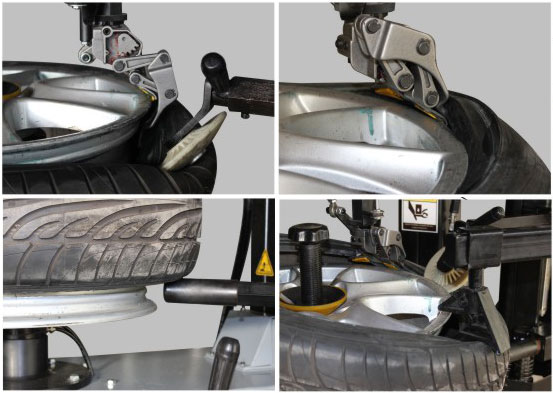

◆Touchless structure, can mounting & demounting tyres more convenient;
◆With external air tank for quick inflation , controlled by a unique foot valve and hand-held for pneumatic device;

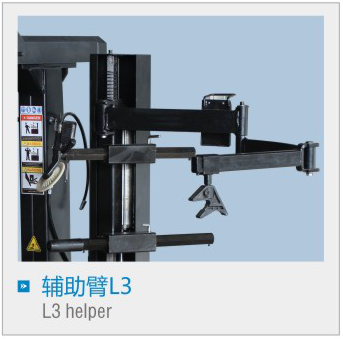

◆With pneumatic helper arm for handing wide, low-profile and stiff  tyres.
·

Technical Specification

TECHNICAL SPECIFICATION:
motor power： 1.1kw/0.75kw/0.55kw
power supply ：110V/220V/240V/380V/415V
max.wheel diameter： 41"（1043mm）
max.wheel width ：14"(360mm)
clamping ：12"--24"
air supply ：8--10bar
rotation speed ：6rpm
bead breaker force： 2500kg
noise level ：<70dB
weight ：419kg
package size ：860*1330*1980mm
20"container 8units
  Details

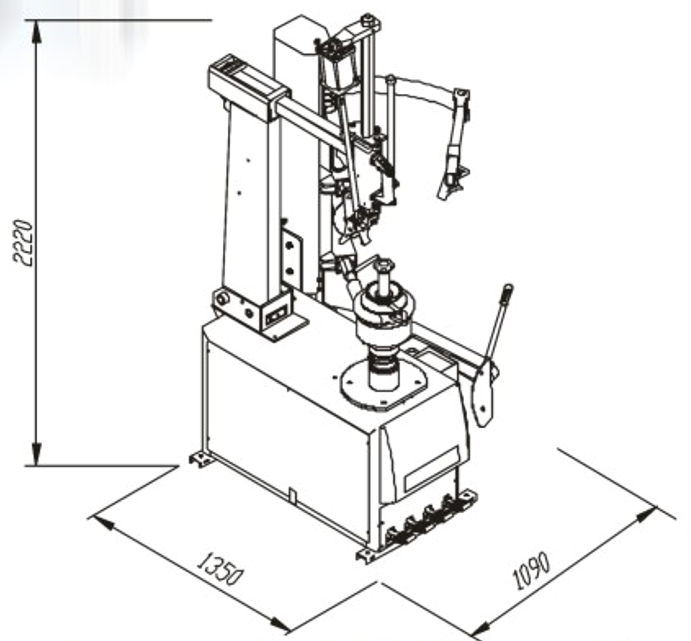

  Packing size and line drawings

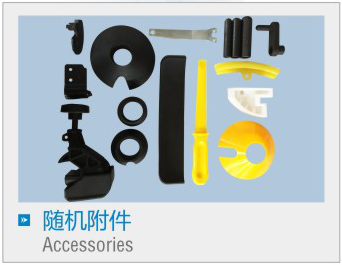

  Optional Parts
