 Small scissor lift > Home
  XSS-M700

Low profile operation platform.

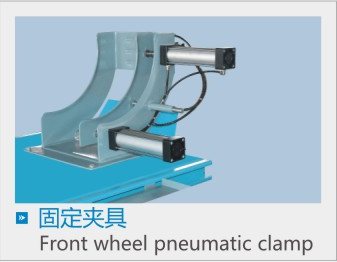

 Front-wheel pneumatic clamp.
Lifting Jack included.
Adopt hydraulic drive, lifting ability powerful, stable and reliable.
Mechanical safety lock to ensure that the different height of lift to be in absolute security.
Portable hydraulic power unit, release lock the foot, flexible and convenient.
CE approved.

·

Technical Specification

Lifting capacity:700kg
Max. lifting height :1200mm / 47''
Min. height :150mm / 6''
Lifting time:20S
Overall length for platform: 2220mm / 87''
Overall width for platform:730mm / 29''
Motor power:1.5kw
Power supply:110V/220V/380V/415V
Air supply pressure: 6~8bar
Weight:320Kg
Packing size :2230*740*260mm
36 units can be loaded into one 20”container
  Details

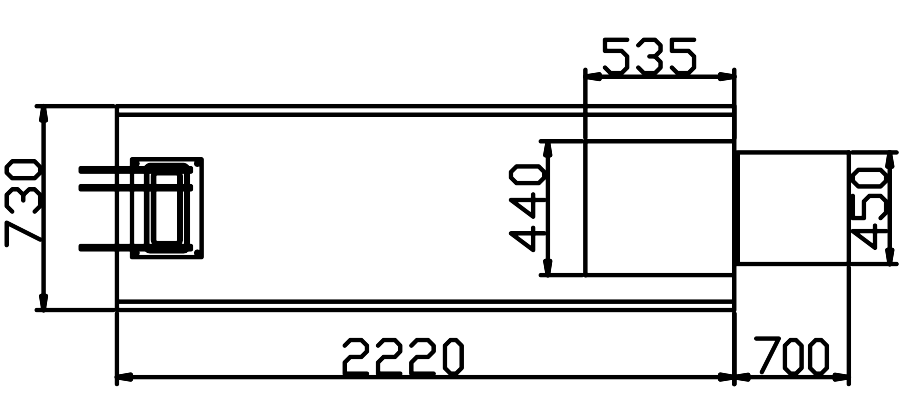

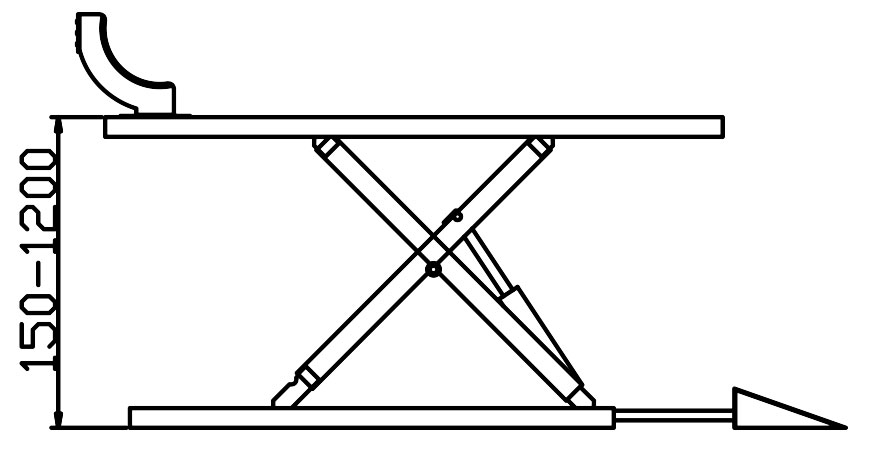

  Packing size and line drawings

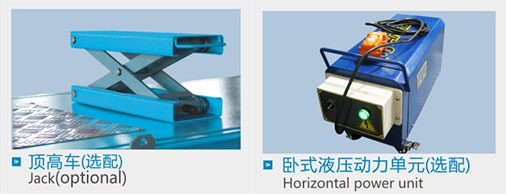

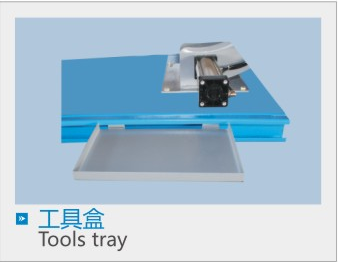

  Optional Parts
