X2PL-7000P

Description of product images and characteristics
X2PL-7000P TWO POST PARKING LIFT
row pooling column design ,save the space;
split joint platform ,convenient for transportation and installation ;
adopt high grade advanced cylinder,safe and reliable;
Adopt double chain ,ensure the lever of the platform;
Equipped with top and bottom limit switch,optoelectronic switch,ensure the safety of the vehicle and products;
24V operating cabinet,and key controlled lifting and lowering system,ensure the saftey of human and vehicle;
solenoid mechanical tooth locking system ,no compressor air required;
Low elevation slope adjustable elevation,super lower chassis vehicle can easy get through.

·

Technical Specification

Lifting capacity: 2700kg
Max.parking height under platform :2050mm
Thickness of the platform :115mm
Lifting time :70s
Descent time :60s
Platform length :4165mm
Platform width: 2000/2100/2200mm
Motor power :2.2kW
Weight : A:1060kg; B:765kg
  Details

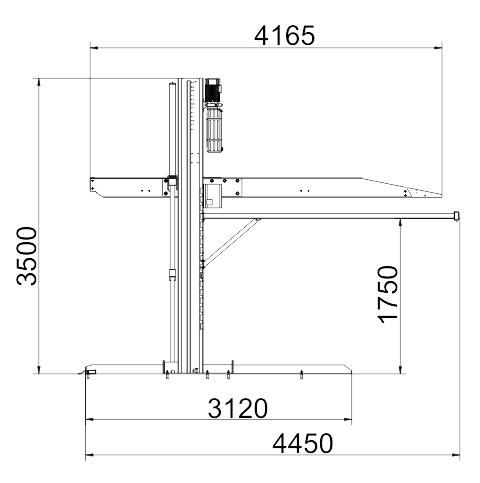

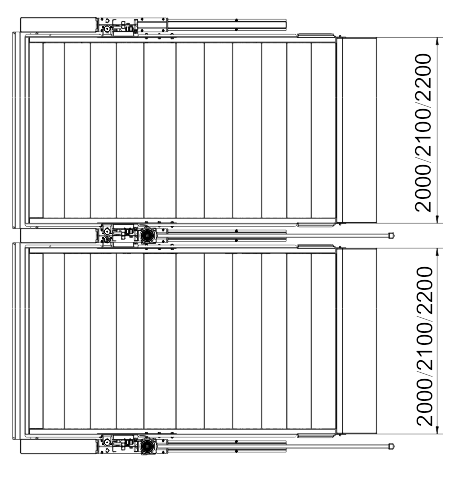

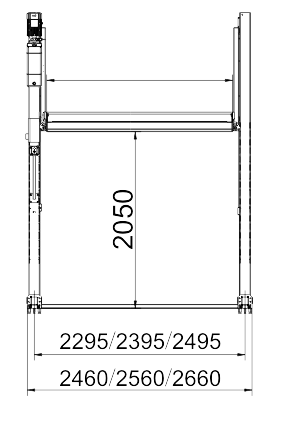

  Packing size and line drawings

  Optional Parts
