 Truck tyre changer > Home

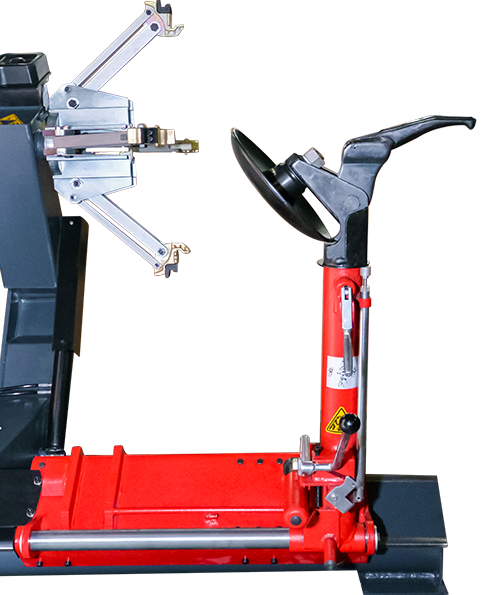

  X-TTC3042

· Semi-Automatic universal truck tyre changer X-TC3042 for industrial,agricultural and earthmoving wheels
· Rim capacity 14”- 42”
· Italian pump
·

Technical Specification

rim diameter 14"--42"
max.wheel weight 1600kg
max.wheel width 1050mm
max.tyre diameter 2300mm
hydraulic pump motor 2.2kw-380V-50Hz-3Ph
gearbox motor 2.2kw-380V-50Hz-4Ph
bead break force 3300kg
operation contrl voltage 24V
noice level ≤70db
temperature 0℃~40℃
machine weight approx 760kg
overall dimension approx 2500*2000mm
power 220V/ 400V -50Hz/ 60Hz-1Ph/ 3Ph

  Details

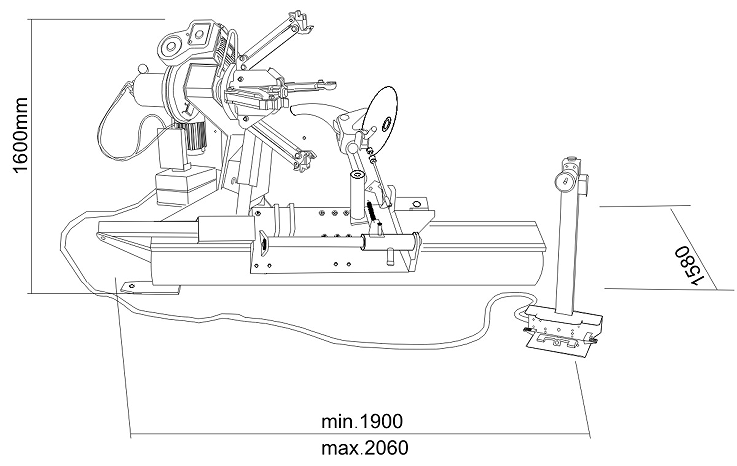

  Packing size and line drawings

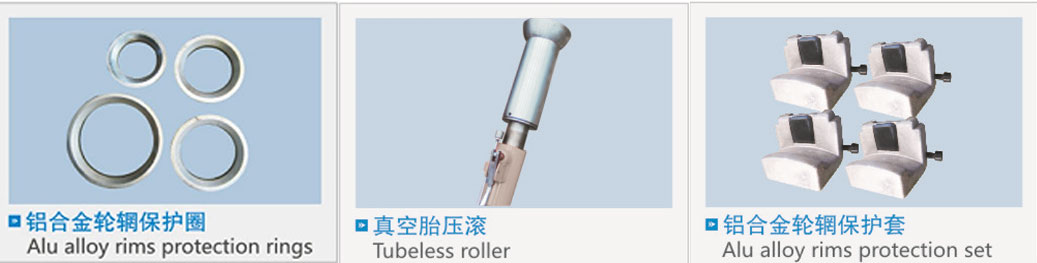

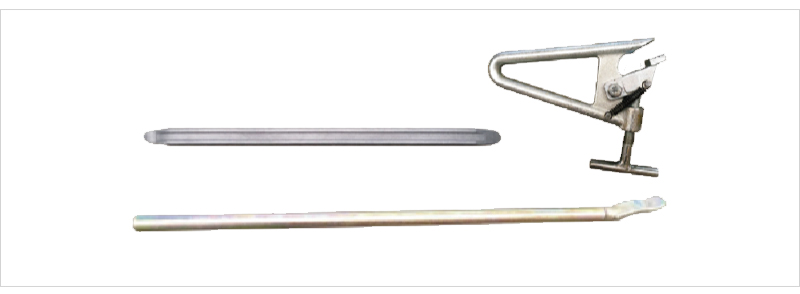

  Optional Parts
