Description of product images and characteristics

 Semi-automatic tyre changer > Home
  X-TC2604+FD50

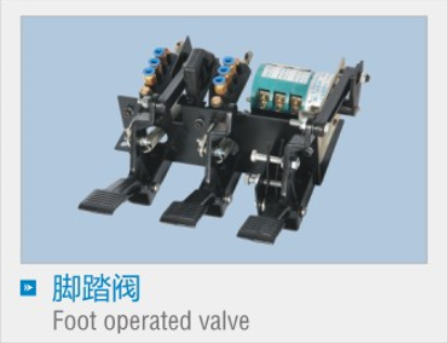

◆Foot valve fine structure can be removed as a whole, operation stably and reliably,  and easy maintenance ;
◆Special steel mount & demount head, super hardness, reduce frictions, as well as rust-proof;

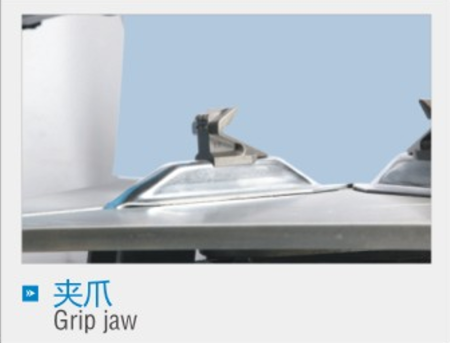

◆Grip jaw adopted U.S. 8640 alloy steel, high strength, wear resistant and antirust ;

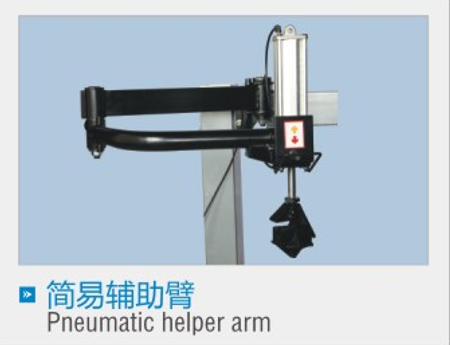

◆Pneumatic helper arm, makes the operation saving time and labor;

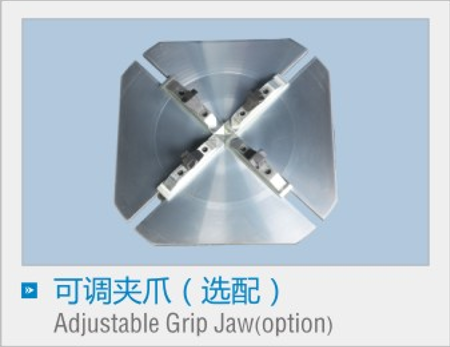

◆Adjustable clamps optional,can extend the scope of the changing from 8'' to 26''.
·

Technical Specification

TECHNICAL SPECIFICATION:
motor power： 1.1kw/0.75kw/0.55kw
power supply ：110V/220V/240V/380V/415V
max.wheel diameter： 44"（1120mm）
max.wheel width ：14"(360mm)
outside clamping ：10"--21"
inside clamping ：12"--24"
air supply： 8--10bar
rotation speed ：6rpm
bead breaker force ：2500kg
noise level <70dB
weight ：298kg
package size ：1100*950*950mm
20"container 24units

  Details

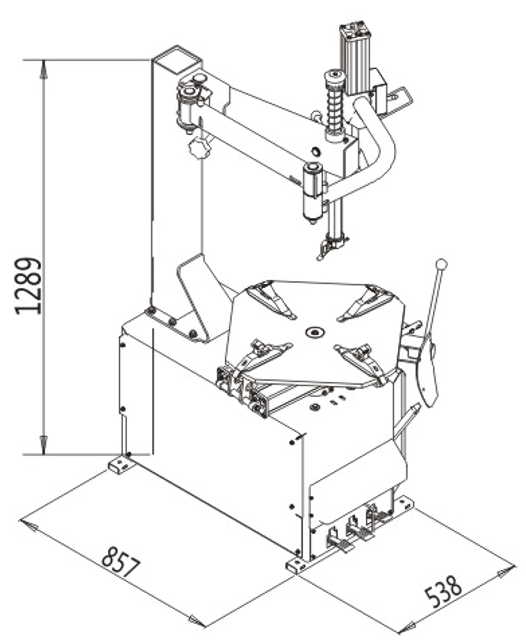

  Packing size and line drawings

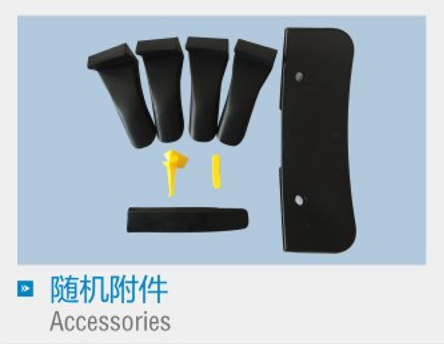

  Optional Parts
