X-TC2422AC+HR360

◆Tilting column and pneumatic locking mount & demount arm;
◆Six-axis oriented tube extends to 270mm can prevent effectively deformation of six-axis;

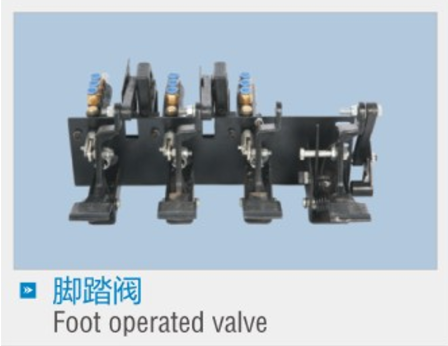

◆Foot valve fine structure can be demounting as a whole, operation stably and reliably, and easy maintenance;

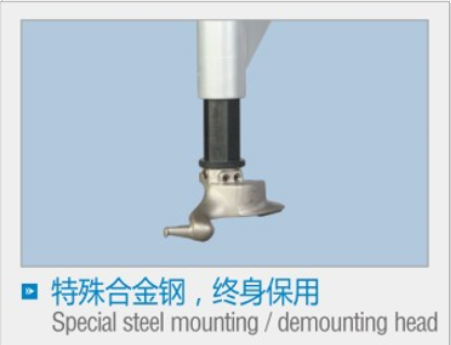

◆Mounting head is made of Alloy steel, Lifetime Warranty;
◆Grip jaw is made of Alloy steel , Lifetime Warranty;

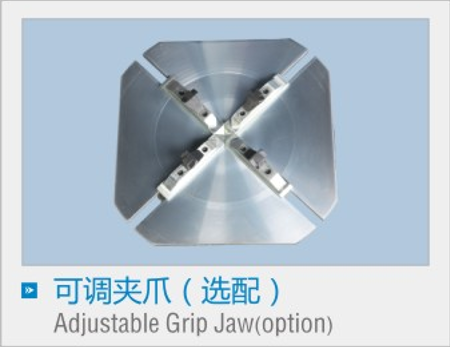

◆Adjustable Grip Jaw(option),±2”can be adjusted on the basic clamping size;

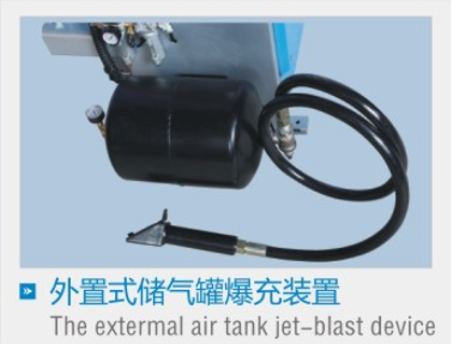

◆Equipped with the external air tank jet-blast device, controlled by a unique foot valve and hand-held pneumatic device;

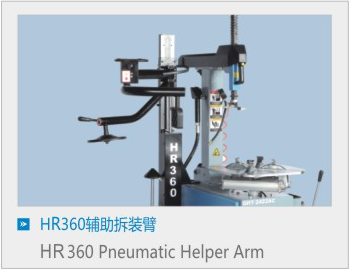

◆With power assist arm for handing wide, low-profile and stiff tyres.

·

Technical Specification

TECHNICAL SPECIFICATION:
motor power :1.1kw/0.75kw/0.55kw
power supply :110V/220V/240V/380V/415V
max.wheel diameter: 44"(1120mm)
max.wheel width: 14"(360mm)
outside clamping :10"--21"
inside clamping :12"--24"
air supply :8--10bar
rotation speed: 6rpm
bead breaker force: 2500kg
noise level :<70dB
weight :406kg
package size :1330*1080*300mm
                   or 1100*950*950mm
20"container 20units
  Details

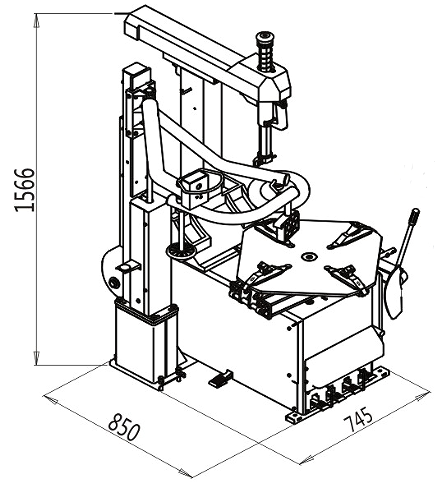

  Packing size and line drawings

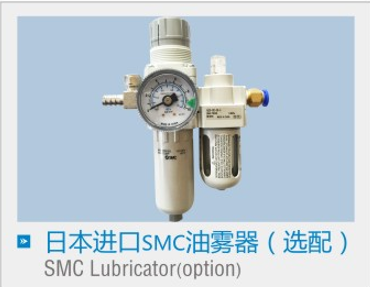

  Optional Parts
