X-TC2422A+L3

◆Tilting column and pneumatic locking mount & demount arm ;

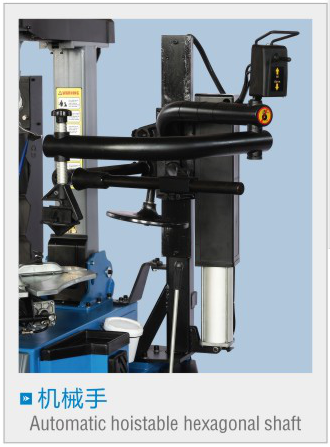

◆Six-axis oriented tube extends to 270mm can prevent effectively deformation of six-axis;

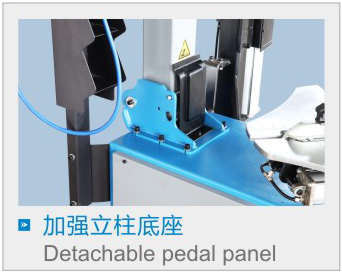

◆Foot valve fine structure can be demounting as a whole, operation stably and reliably, and easy maintenance ;

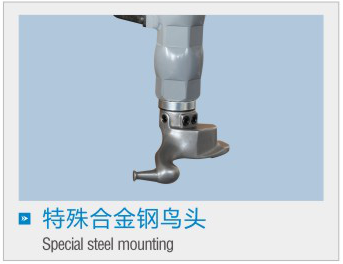

◆Special steel mount & demount head, super hardness, reduce the frictions as well as corrosion ;
◆Grip jaw adopted U.S. 8640 alloy steel, high strength, wear resistant and antirust;

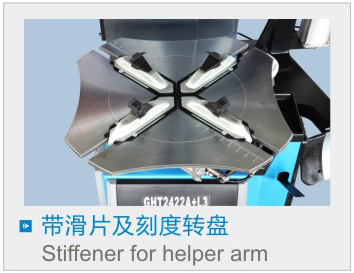

◆Adjustable clamps  can extend the scope of the changing from 8'' to 26'';
◆Equipped with the external air tank jet-blast device, controlled by a unique foot valve and hand-held pneumatic device;

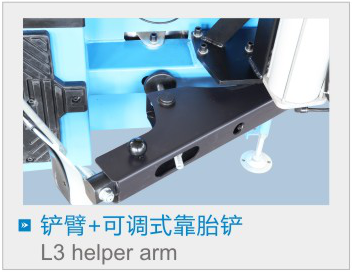

◆With power assist arm for handing wide, low-profile and stiff tyres.

·

Technical Specification

TECHNICAL SPECIFICATION:
motor power 1.1kw/0.75kw/0.55kw
power supply 110V/220V/240V/380V/415V
max.wheel diameter 44"(1120mm)
max.wheel width 14"(360mm)
outside clamping 10"--21"
inside clamping 12"--24"
air supply 8--10bar
rotation speed 6rpm
bead breaker force 2500kg
noise level <70dB
weight 335kg
package size 1330*1080*300mm
                  or 1100*950*950mm
20"container 24units

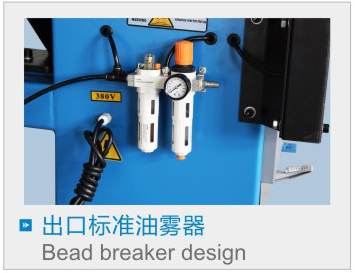

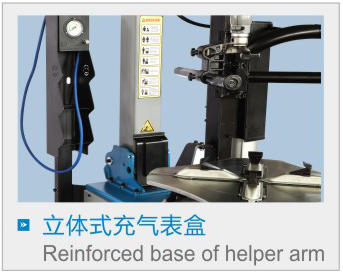

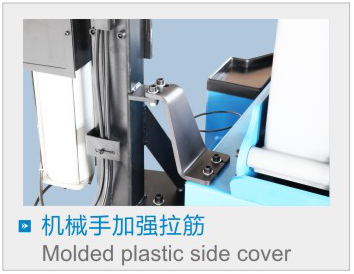

  Details

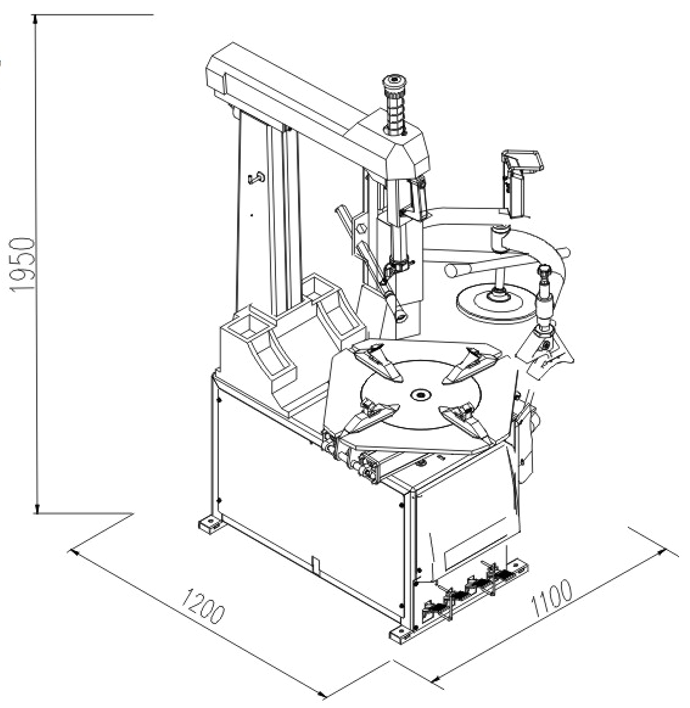

  Packing size and line drawings

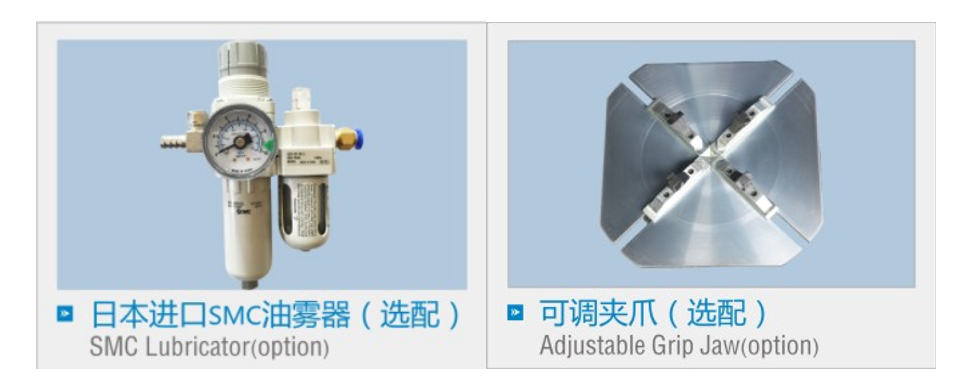

  Optional Parts
