  XSS-ML30A/30B/30C

XSS-ML30A/30B/30C MID-RISE SCISSOR LIFT
Low profile operation platform;
2-cylinders structure, synchronization system;
Mechanical safety lock to ensure that lift at different heights to  get the absolute security;
Portable  pump station ,pneumatic electric controlled  release system. flexible and convenient.
Optional movable devices, easy to use operator;
No installation required.

·

Technical Specification

Lifting capacity:3000kg/6600lbs
Max. lifting height :1000mm
Min. height :110mm
Lifting time:30S
Overall length for platform: 1400mm
Overall width:530mm
Overall width for platform :1760mm
Width between platform :700mm
Motor power:2.2KW
Power supply : 220V/380V/415V
Air supply:6-8bar
Weight :A:550Kg/B:570Kg/D:600Kg
Packing size:1800*1540*200+520*430*1150mm
30 units can be loaded into one 20”container
  Details

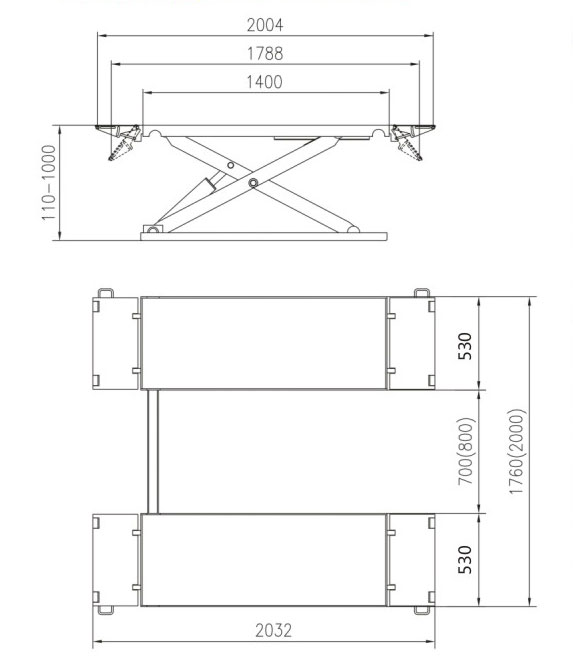

  Packing size and line drawings

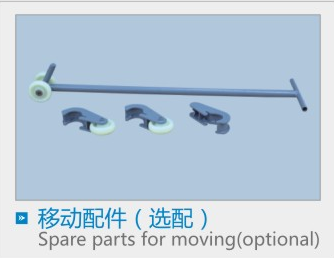

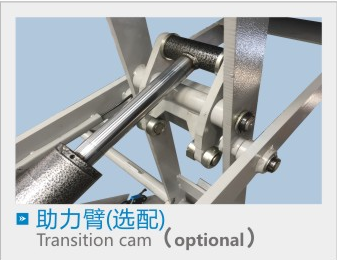

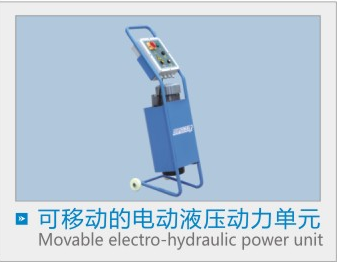

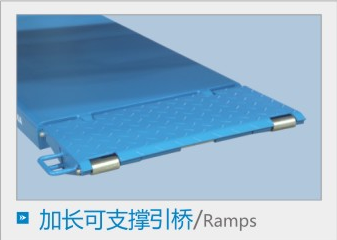

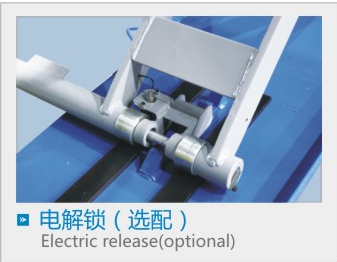

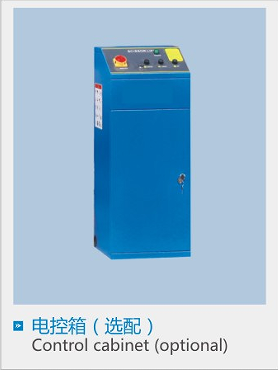

  Optional Parts
