Description of product images and characteristics

 Portable scissor lift > Home
  XSS-PL27

Good choice for body shop or work shop and family;
Full 2700 KG/6000 LBS lifting capacity;
Manual single point lock release;
Portable, easy to move;
Two hydraulic cylinders;
Safety lock at any work height;
SUV adapters (4 PCS) included;

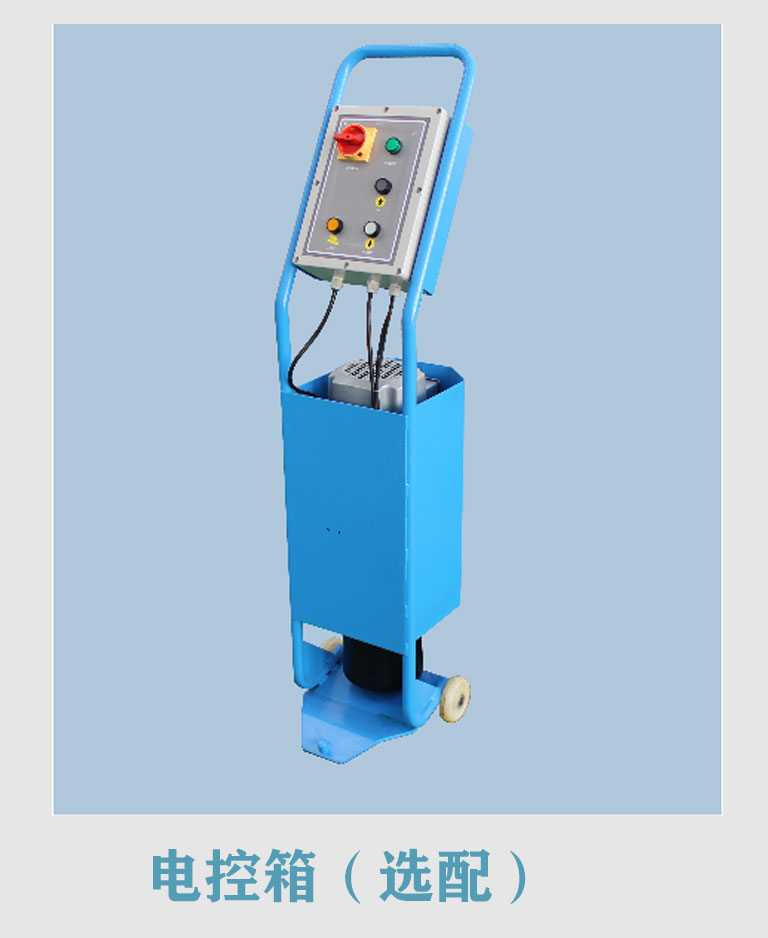

Separate motor stand included;
It has adopted 115% dynamic loading capacity and 150% static loading capacity tested;
CE certificated.

·

Technical Specification

Lifting capacity :2700kg/6000lbs
Max. lifting height: 1200mm
Min. height :110mm
Width:1000mm
Length:1685mm
Lifting time :30S
Motor power :2.2kw
Power supply: 110V/220V/380V
Air supply: 6-8bar
Weight :451kg
Packing size :2300*1050*230+920*400*460mm
36 units can be loaded into one 20”container
  Details

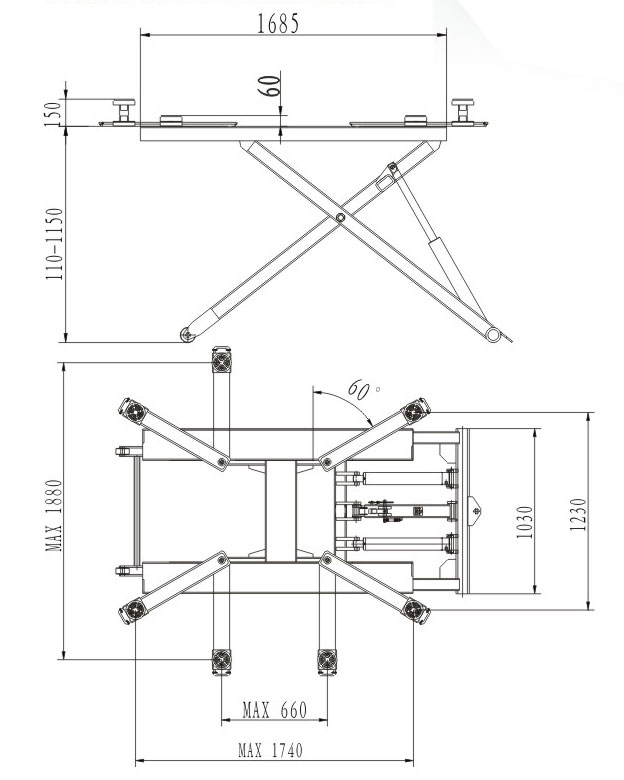

  Packing size and line drawings

  Optional Parts
