Description of product images and characteristics

 Large scissor lift > Home
  XBS-1742/1842

Super low profile and perfect for ground mounted;
Suitable for any positioning turn table;
Equipped with safety lock, makes the run way more stable ,and more safety operating;
Equipped with second lifting jack,which equipped with telescopic sliding beam and bracket.

·

Technical Specification

Rating capacity ：3500/4000kg
Runway length ：4200/4500mm
Runway Width： 635/635mm
Max. Lifting height ：1700/1700mm
Min. height：190/190mm
Lifting time：60s
Jack capacity ：2500kg
Central jack raised height： 450mm
Motor power ：2.2kw
Power supply： 380V/415V 3phase
Air supply ： 6~8Kg/cm2
Packing size ：4600/4900*650*700
Weight ：2167/2277kg
9 units can be loaded into one 20”container
  Details

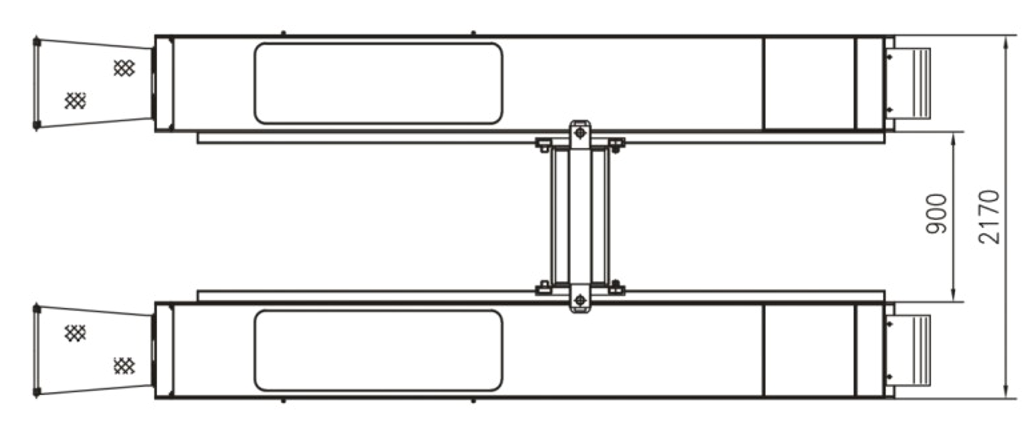

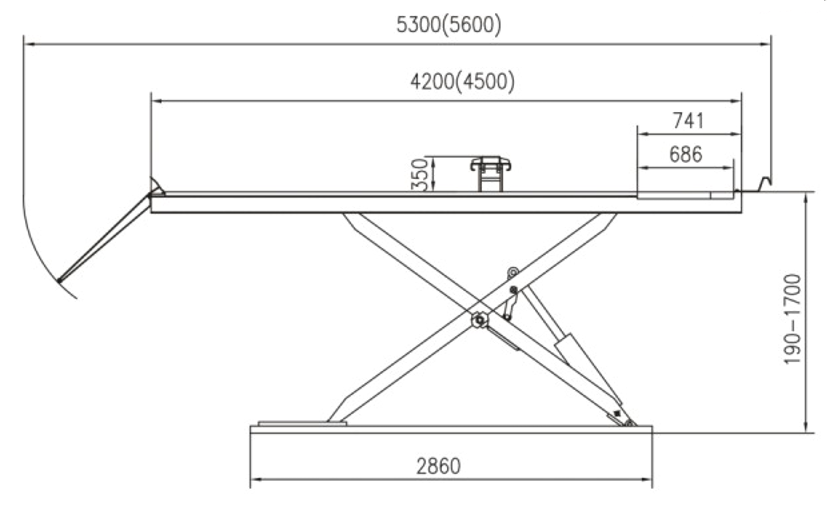

  Packing size and line drawings

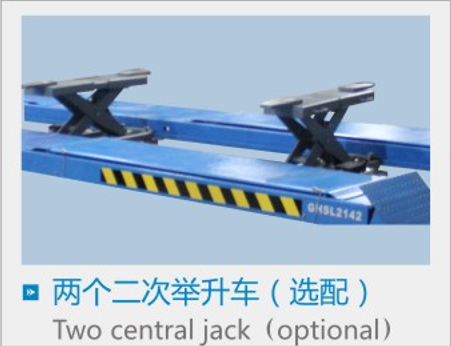

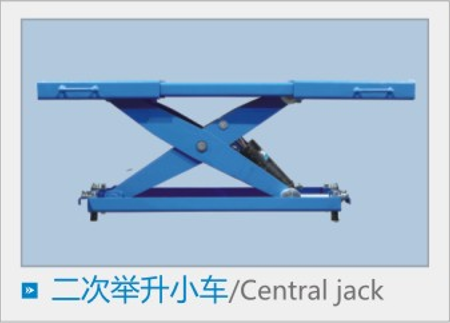

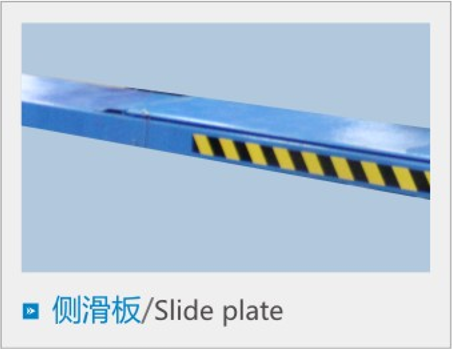

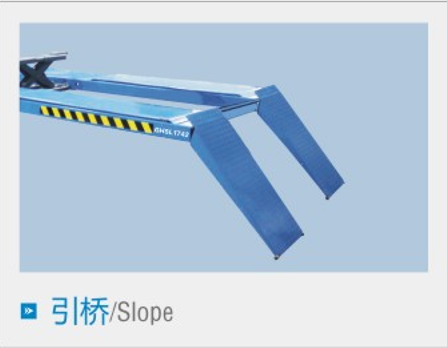

  Optional Parts
