XL-1P25ME

Single post lift needs less space than two post lift or four post lift in your garage, is ideal choice for basic maintenance, tire changing, etc. meanwhile one post design makes door open easily. ?The mobile one is convenient to move in garage, covers most of cars and SUVs with capacity of 2.5T. Space saving single post design can be positioned either to give complete free access to the drivers door. Single hydraulic cylinder, Heavy-duty leaf chain, Free standing design, Durable construction for maximum stability, Mechanical safety device against the accidental lowering, Adjustable support arm.

·

Technical Specification

Lifting capacity 2500kg
Max.Lifting Height 2000mm
Minimum height 110mm
Lifting time   40s
Overall height  2730mm
Overall width  1600mm
Overall Length   2200mm
Motor Power 2.2kw
Power supply 220V/240/380V/415V
Weigh  900kg
  Details

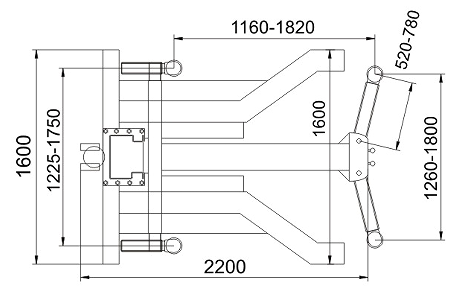

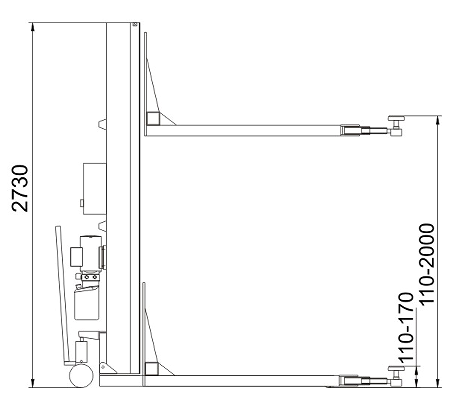

  Packing size and line drawings

  Optional Parts
