XL-4P35E/40E/50E/55E_Four post lift_Yingkou X Garage Equipment Co.,Ltd.

XL-4P35E/40E/50E/55E

Adopt hydraulic cylinder drive, rope drive, quiet and smooth lifting.

Hydraulic power unit configuration throttling device, they can always adjust the rate of decline.

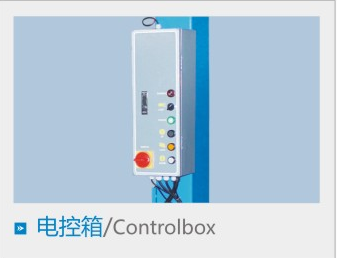

Electrical Release.

Adopt electrical Release, four-point locking system. Easy tooperate, can be locked in the desired height of operations, safety and reliability.

With wire control security lock set with a wire rope fracture protection, operational safety.

Runway spacing is adjustable for different wheel base vehicles.

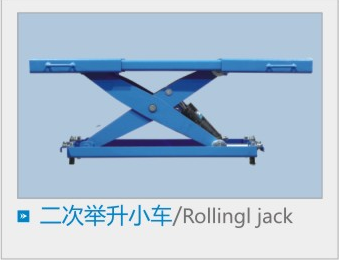

With the second lift pulley.

·	Technical Specification

Lifting capacity :3500kg /4000kg /5000kg/5500kg

Lifting height： 1800mm

Minimum height ：220/220/260/260mm

Overall Length：5660/5860/5860/6560mm

Overall width：3150/3230/3230/3230mm

Width between columns： 2750/2930/2930/2930mm

Runway length ：4250/4800/4800/5500mm

Runway width ：520/520/500/500mm

Within the runway distance： 860~1200mm

Central Jack height ：450mm

Motor Power ：2.2/2.2/3.0/3.0KW

Power supply ；220V/240V/380V/415V

Weight :1494/1714/1934/2100kg

Packing size : 4570/5100/5100/5700*560*730

12units can be loaded into one 20”container

Details

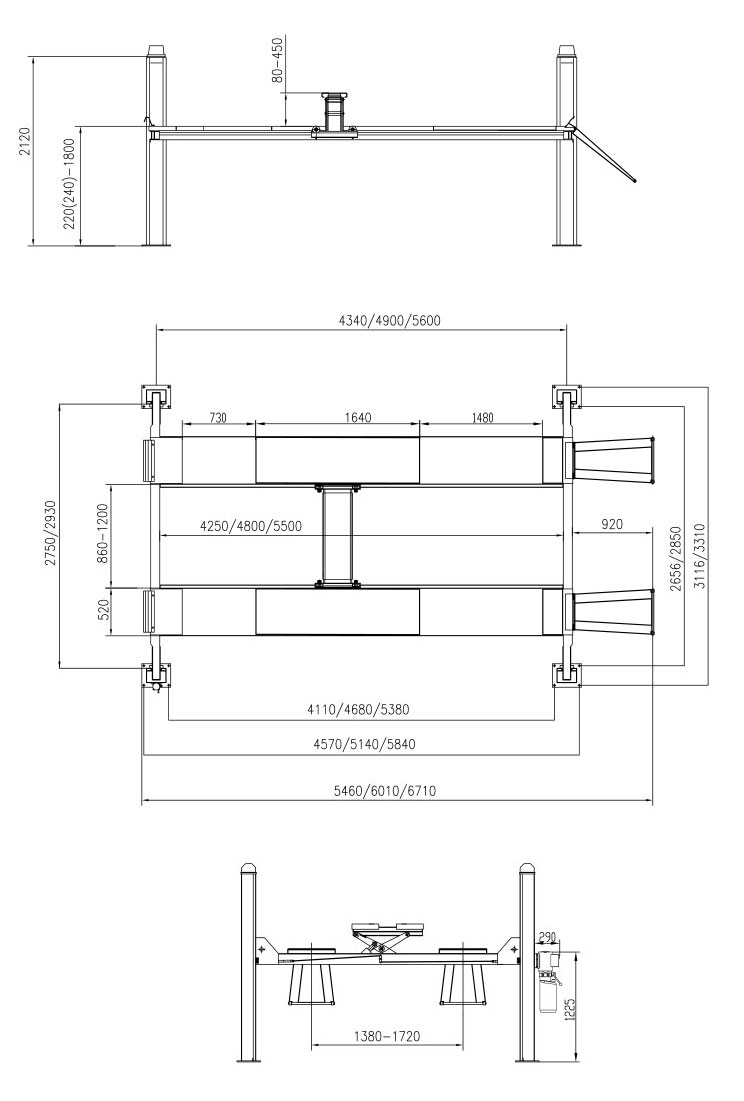

Packing size and line drawings
